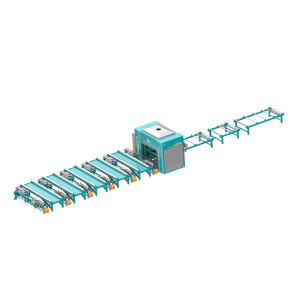

H Beam Assembly Machine

H Beam Assembly Machine

H Beam Assembly Machine
H Beam Assembly MachineH Beam Assembly MachineH Beam Assembly MachineH Beam Assembly Machine
CategoriesH Beam Assembly Machine
BrandYOMI CNC Cutting&Welding Machinery
ModelYM-PHJ-0818,YM-PHJ-0820
Web height200~1800mm
Web thickness6-40mm
Flange width200~1000mm
Flange thickness6-40mm
Work-piece length4000~15000mm or as user’s request
Welding processSingle arc single wire,Double arc double wire
Assembly speed0.5~6mmin
Update TimeNov 4,2024
Detail Information
H Beam Assembly Machine
H/T Beam Assembly Machine
1.It is suitable for assembling symmetrical H beam,I beam,T beam with constant cross section.
2.The flanges and web are centered by three sets of centering manipulator groups at  input roller table, then sent to the host,
3.The hydraulic cylinder drives synchronous clamping and centering device on both sides to realize self-realization.
4.PLC controls spot welding and fast forward speed, weld length and interval length during entire assembly process, which is easy to operate and it has high assembly efficiency.
Technical Parameters
Model

YM-PHJ-0818

YM-PHJ-0820

Web height
200-1800mm
200-2000mm
Web thickness
6-32mm
6-60mm
Flange width
200-800mm
200-1000mm
Flange thickness
6-40mm
6-80mm
Workpiece length
500-6500mm/min
4000-15000mm/min
Power
8.4kw(excluding two welding machines)
12.7kw(It does not include welding power source)
Details Introduction
H Beam Assembly Machine
Service Life
H Beam Assembly Machine
Main Drive Wheel
H Beam Assembly Machine
Large Webs
H Beam Assembly Machine
Welding Torch Holder
H Beam Assembly Machine
Centralized Lubrication System
Product Advantages
Precise positioning
The workpiece is clamped by the flange & the web hydraulic cylinder and the screw to ensure the correct positioning of the workpiece.
Safe and stable
The upper hydraulic cylinder drives the pressure roller to press the workpiece tightly, so that the web and the flange are closely attached, and the welding torch is sent to the mechanism, driven by the oil cylinder to the welding position.
Wide range of applications
Widely used in many fields such as steel structure processing etc.
High productivity
Flanges and webs are clamped and centered tightly, accurate positioning and high production efficiency.
