H-beam CNC Assembly Welding Straightening Machine

H-beam CNC Assembly Welding Straightening Machine

H-beam CNC Assembly Welding Straightening Machine
H-beam CNC Assembly Welding Straightening MachineH-beam CNC Assembly Welding Straightening MachineH-beam CNC Assembly Welding Straightening MachineH-beam CNC Assembly Welding Straightening MachineH-beam CNC Assembly Welding Straightening Machine
CategoriesAssembling Welding Straightening 3 In 1
BrandYOMI CNC Cutting&Welding Machinery
ModelPHJ0818
Workpiece height200-2000mm
Web thickness6-40mm
Flange width200-800 mm
Flange thickness8-60mm
Controllable deformation of thicknessThe Max 40mm
Workpiece length4000-15000mm
Conveying speed of the workpiece6000mm/min
Welding processSingle arc single wire
Update TimeJun 25,2024
Detail Information
Description
Assembly Welding Straightening Machine
3 In 1 H Beam Assembling Welding Straightening Machine

1.It is a special machine for assembling, welding and straightening of H beam/I beam/T beam.

2.It integrates the processes of assembly machine, gantry welding and straightening machine into one machine.

3.It significantly improves production efficiency ,reduces labour cost, saves installation space.

VEDIO
Technical Parameter

Item

Technical Parameter

Workpiece height

200-2000mm

Web thickness

6-40mm

Flange width

200-800mm

Flange thickness

8-60mm

Controllable deformation of thickness

The Max 40mm

Workpiece length

4000-15000mm

Conveying speed of workpiece

6000mm/min

Welding speed

150-1500mm/min

Welding process

Single arc single wire, Double arc double wire, Single arc double wire.

FEATURES
Assembly Welding Straightening Machine

1. Assembly Parts

Assembly Welding Straightening Machine

2.Hydraulic Assembly

Assembly Welding Straightening Machine

3.Welding Parts

Assembly Welding Straightening Machine

4.Bilateral Welding

Assembly Welding Straightening Machine

5.Flange Straightening Part

Assembly Welding Straightening Machine

6.Parametric Interface

Advantages Compared with Traditional Beam Production Line
  • Labor Saving:Traditional beam production line requires 5 workers, our 3 in 1 beam production line only needs 2 workers.- assembly, welding and straightening at the same time.
  • Footprint Saving: The total length of traditional beam production line is about 90m, while 3 in 1 beam production line is about 30m lo, which saves two-thirds of loor area.- It can welding two seams once, while traditional only can welding one seam once.
  • High Efficiency: Traditional beam production line needs to flip four times, 3 in 1 beam production line only needs to flip one time and the deformation is small.Saving 2/3 of the workspace.
Application
Assembly Welding Straightening Machine
 H Beam Welding Machine with Assembly Welding Straightening
H beam welding line for H beam direct assembling, welding and straightening , it combines assembly machine, gantry welding machine and flange straightening machine designed on one machine, thus highly improved efficency, save cost, save labor.
Assembly Welding Straightening Machine
Support a veriaty of welding type:
- single arc single wire welding
Recommended
H Beam Horizontal Assembly Machine
H Beam Horizontal Assembly Machine have Four pistols spot welding at the same time, one time finish work.
H Beam Assembly Machine
H Beam Assembly Machine is suitable for H -shaped steel with symmetrical and equivalent sections.

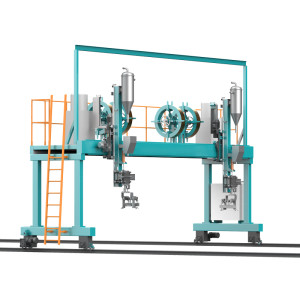

H Beam Gantry Welding Machine
H beam gantry saw welding machine is special equipment used for H-beam welding.
H Beam Horizontal Straightening Machine
H Beam Horizontal Straightening Machine is to correct the flange plates on both sides at the same time.
