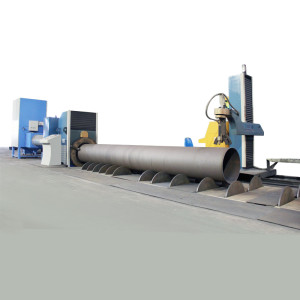

Roller Type Pipe CNC Plasma Cutting Machine

Roller Type Pipe CNC Plasma Cutting Machine

Roller Type Pipe CNC Plasma Cutting Machine
Roller Type Pipe CNC Plasma Cutting MachineRoller Type Pipe CNC Plasma Cutting MachineRoller Type Pipe CNC Plasma Cutting Machine
CategoriesPipe Cutting Machine
BrandYOMI CNC Cutting&Welding Machinery
ModelYM-XG
Cutting diameter630-2000mm
Effective cutting length12000mm
Cutting MethodFlame/plasma cutting
Cutting speed10~2000mm/min
Moving speed10~6000 mm/min
Flame cutting pipe wall thicknessVertical cut 6~60mm bevel cut 6-40mm
Plasma cutting pipe wall thicknessAccording to the plasma power source
Flame bevel angleflame hole cutting ±55° flame end cutting ±60°
lasma bevel angleplasma cutting ±45°
Update TimeMar 2,2024
Detail Information
Description
Roller Type Pipe CNC Plasma Cutting Machine
Roller Type Large Diameter CNC Plasma Cutting Machine
1.It adopts floating chuck box and roller brackets. It is convenient to load large diameter pipes and does not need to adjust the distance of rollers.
2.The centre-height of chuck is floating and adjustable,using method of chuck floating without moving of pipe,to improve cutting quality of large diameter pipe .
3.It Support Tekla, 3D3S, CAD, SolidWorks with high compatibility, directly generate G code.
4.It can cut carbon steel, stainless steel,aluminium and ect.
5.It is widely used in steel structure,marine offshore engineering,oil pipeline,petrochemical and other industries.
VEDIO
Technical Parameter

Cutting diameter

Φ=108-1000mm Φ=108-1200mm Φ=325-1620mm

Cutting length

6000m/9000m/12000m or customized

Cutting Method

Flame/plasma

Control system

Advantech IPC with YOMI PIPE

Driving system

Japanese Panasonic servo motors

Flame cutting thickness

Vertical cut 6-60mm  bevel cut 6-40mm

Plasma cutting thickness

It is depended by plasma power source

Flame bevel angle

Flame hole cutting ±55° flame end cutting ±60°

Plasma bevel angle

Plasma cutting ±45°

Required work piece ovality

≤1%

Cutting speed

102000mm/min

Moving speed

106000 mm/min

Number of axis and range of motion

X axis: torch moves along the length of pipe

Y axis: 360° free rotation of pipe

A axis: cutting torch swings ±55° along the radial of pipe

B axis: cutting torch swings ±60° along the axial of pipe

Z axis: cutting torch ascending and descending , this axis does not participate in the linkage, the maximum line is 620mm

Cutting length accuracy

±1.5mm

Maximum loading weight

10000Kgs

Cutting Sample
Roller Type Pipe CNC Plasma Cutting Machine
Roller Type Pipe CNC Plasma Cutting Machine
Roller Type Pipe CNC Plasma Cutting Machine
Roller Type Pipe CNC Plasma Cutting Machine
Roller Type Pipe CNC Plasma Cutting Machine
Large Diameter Pipe Cutting for Point to Point Connections in Offshore Construction.
Different Cutting Types
Roller Type Pipe CNC Plasma Cutting Machine
Roller Type Pipe CNC Plasma Cutting Machine
