H Beam Horizontal Assembly Machine

H Beam Horizontal Assembly Machine

H Beam Horizontal Assembly Machine
H Beam Horizontal Assembly MachineH Beam Horizontal Assembly MachineH Beam Horizontal Assembly Machine
CategoriesH Beam Assembly Machine
BrandYOMI CNC Cutting&Welding Machinery
ModelYM-WZL
Update TimeNov 3,2024
Detail Information

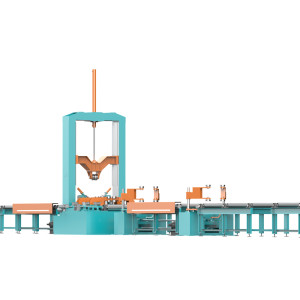

The workpiece is placed horizontally .Machine with double 90° hydraulic flip.
Synchronous clamping, automatic alignment of the web and flange.
Four pistol spot welding at the same time, one time finish work.
Technical Parameters
Model
YM-WZL
Component material
≤Q355
Flange width
140-800mm
Flange thickness:
8-40mm
Web Height:
350-1500mm
Web Thickness:
6-40mm
Workpiece length:
5000-15000mm
Conveying speed:
8700mm/min
Welding speed:
150-1500mm/min
Equipment size:
35m*10m*4m
Product Features
1.Strong equipment stability
The core parts are cast parts and the structure is stable.
The main drive wheel uses an integral forging process with high compression and wear resistance.
The use of centralized lubrication system, extend the service life of equipment and reduce labor costs.
2.High production efficiency
Double 90° hydraulic flip, automatic alignment of the web and flange..
Four pistol spot welding same time, the component does not need to turn over..
Vertical assembly increases efficiency by more than three times.
3.High Processing Quality
Brand Aotai/Zhenzhong welding machine.
Spot welding spacing and length fully automatic adjust.
Spot welding parameters of different specifications are automatically retrieved from the equipment parameter library.
4.Digital production
Full link to production process, logistics interoperability.
High degree of automation, without too much manual intervention.
The whole process starts with one start.
