Offshore Double-end Cutting Machine

Categories	Offshore Double-end Pipe Cutting Machine
Brand	YOMI CNC Cutting&Welding Machinery
Model	YM-HG
Pipe diameter	φ400~1800mm,φ1400~2800mm
Cutting length	9000-40000mm，Tapered dual-head penetration cut
Cutting method	Plasma/Flame
Piercing thickness	6~100mm
Cutting speed	10~700mm/min
Moving speed	10~6000mm/min
Cutting length accuracy	±5mm
Bevel cutting	End bevel ≤ ±65°
Max. loading weight	120T
Update Time	Jul 19,2025

Contact Now

Favorites

Detail Information

Description

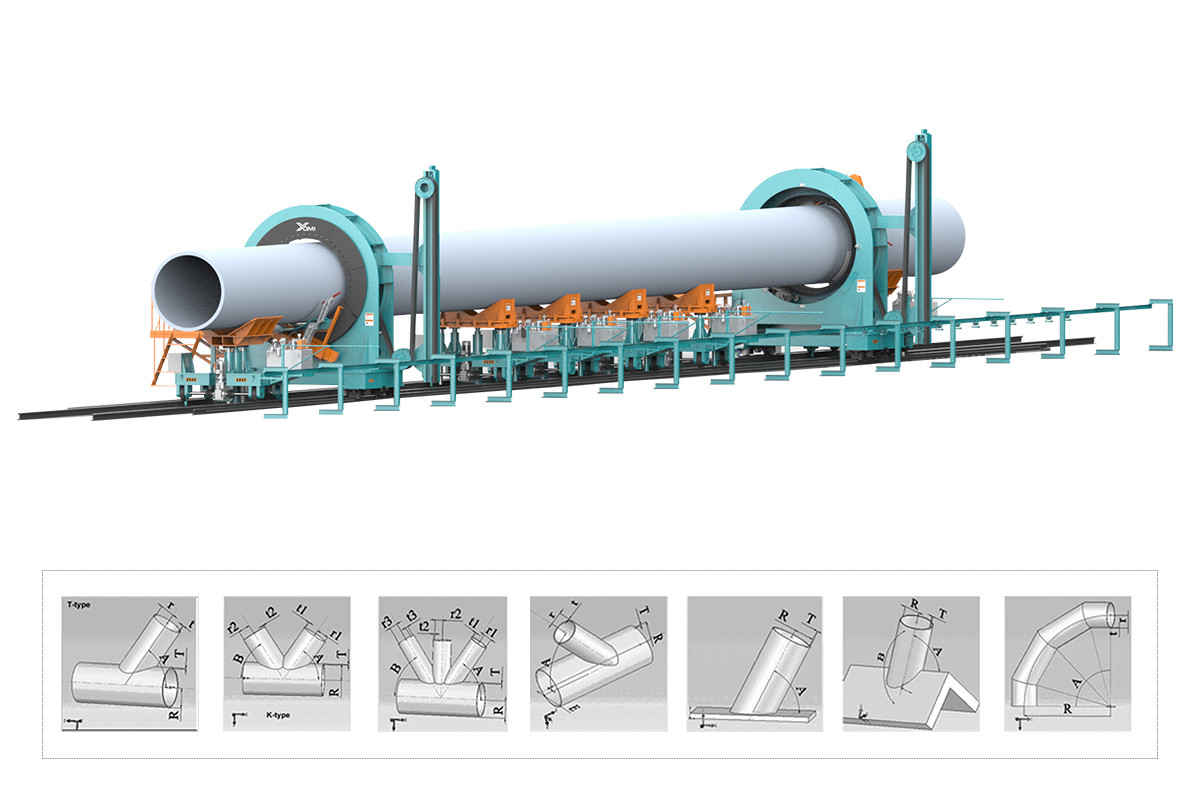

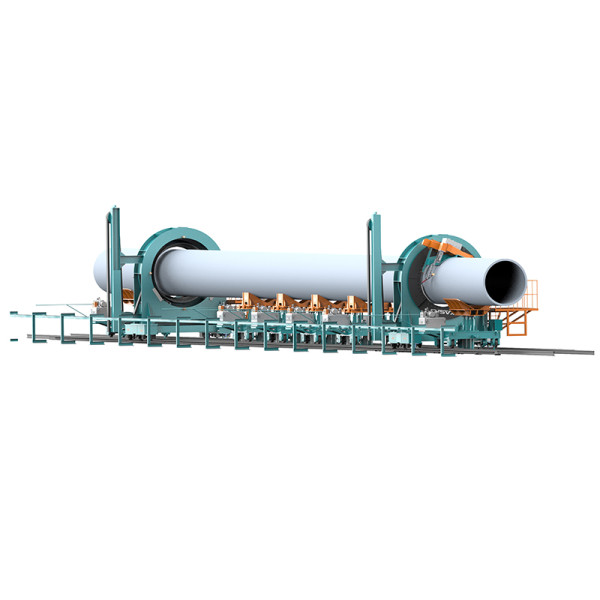

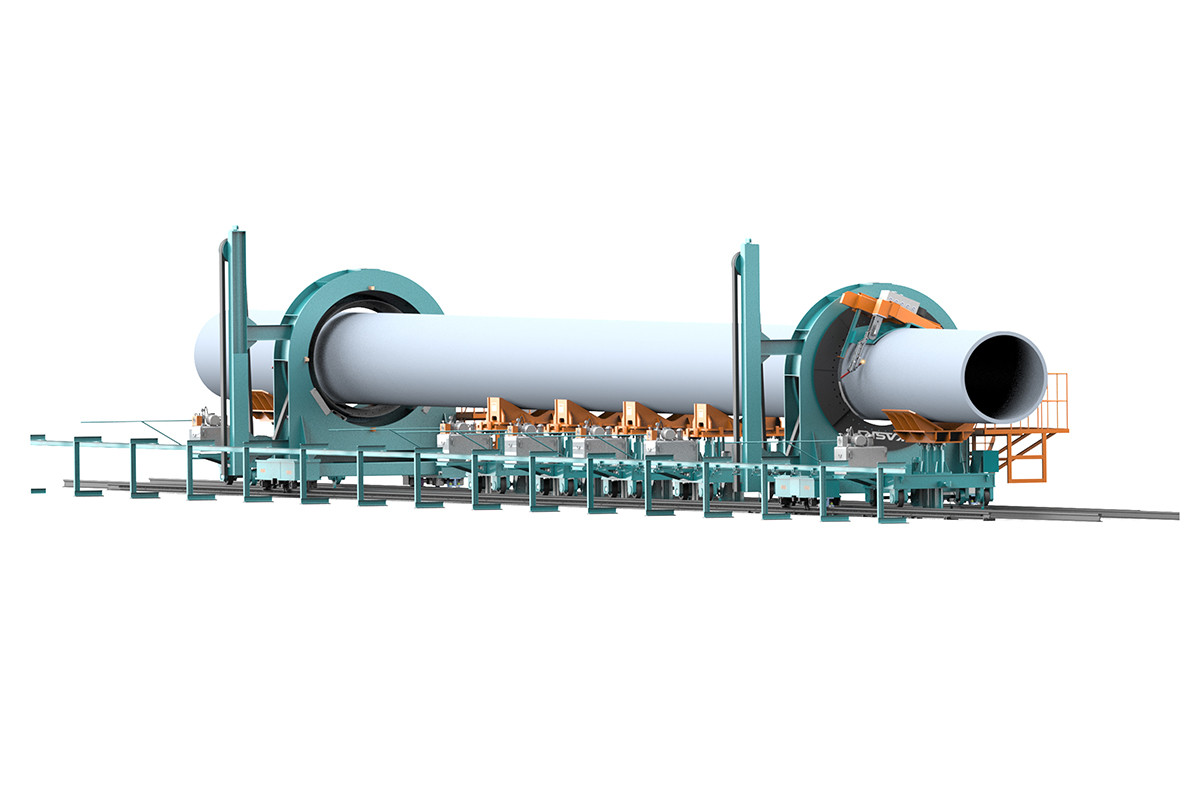

Offshore Double-end Cutting Machine

1. High automation and cutting quality, featuring optimized nesting and multiple programming methods.

2. Suitable for large, long and thick (100mm) pipes

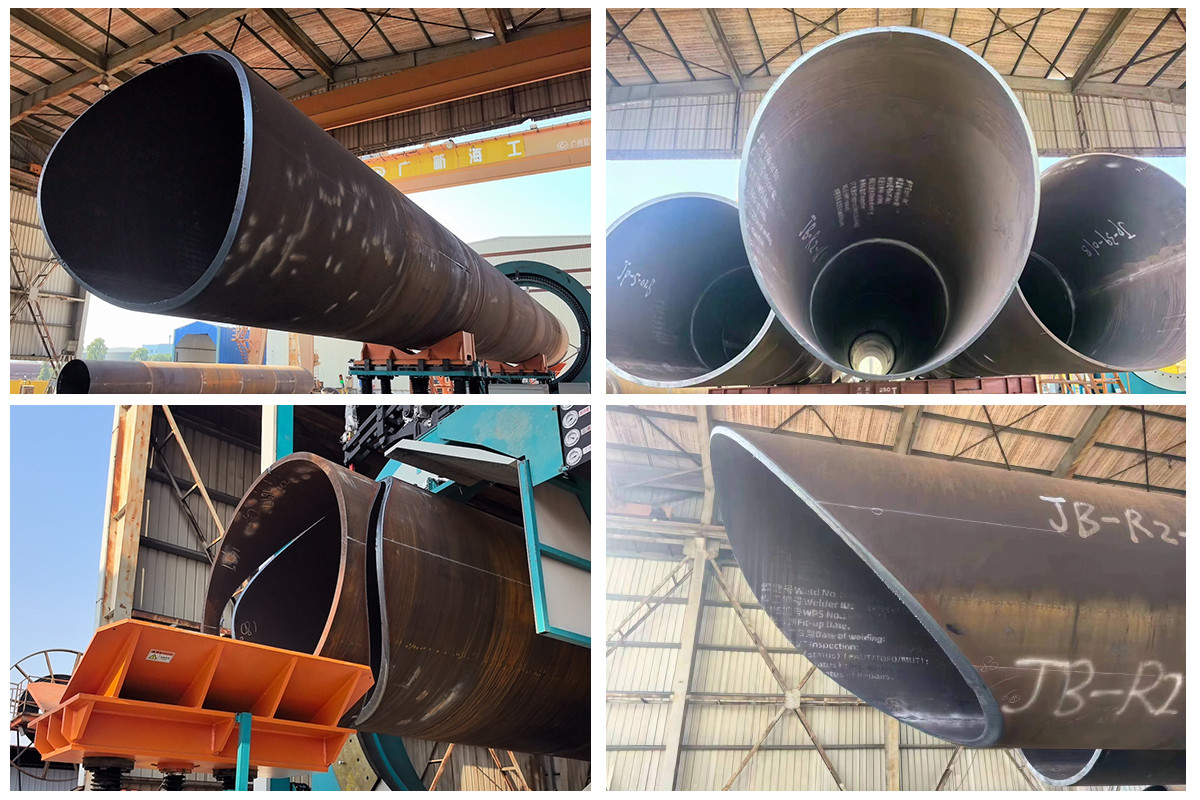

3. Processing types include end processing and intersection cutting.

VEDIO

Equipment Advantages

▶Subverting the traditional cutting process

1. Supporting various overlapping forms of groove cutting process

2. Supporting AWS (small angle groove) welding standard

3. AP (full penetration) welding process standard

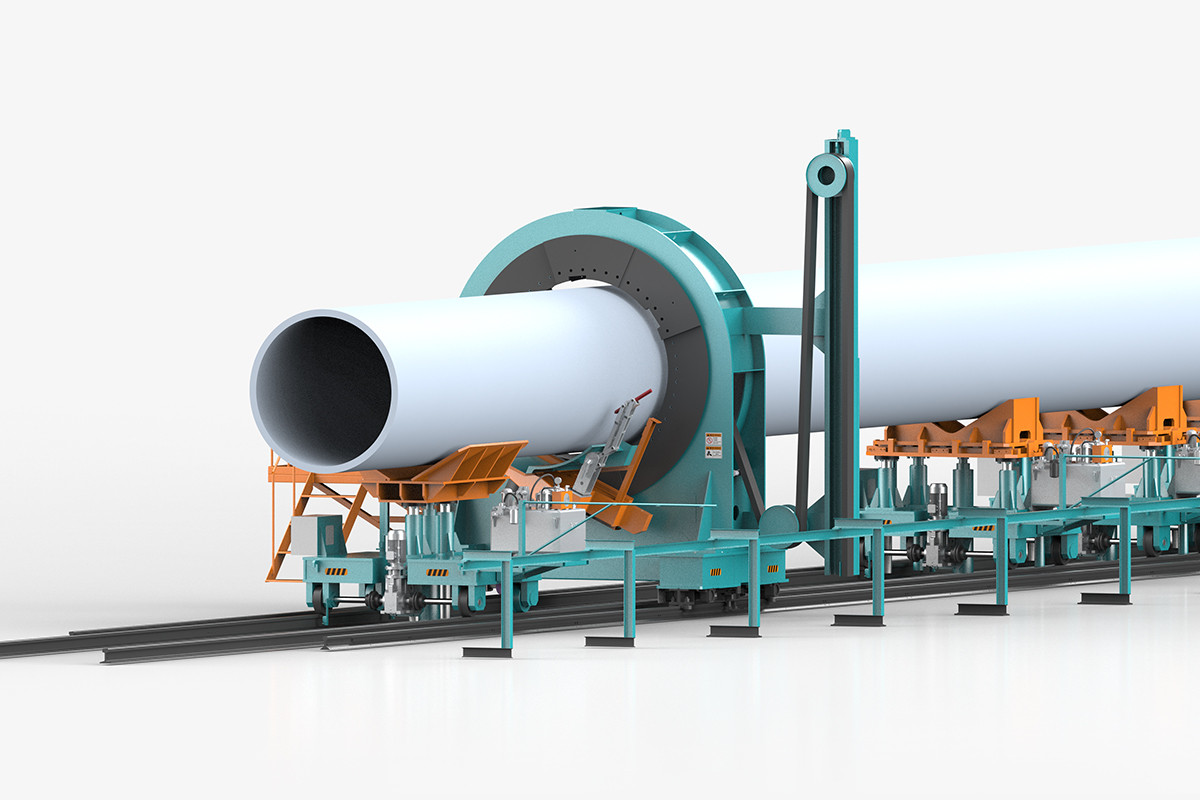

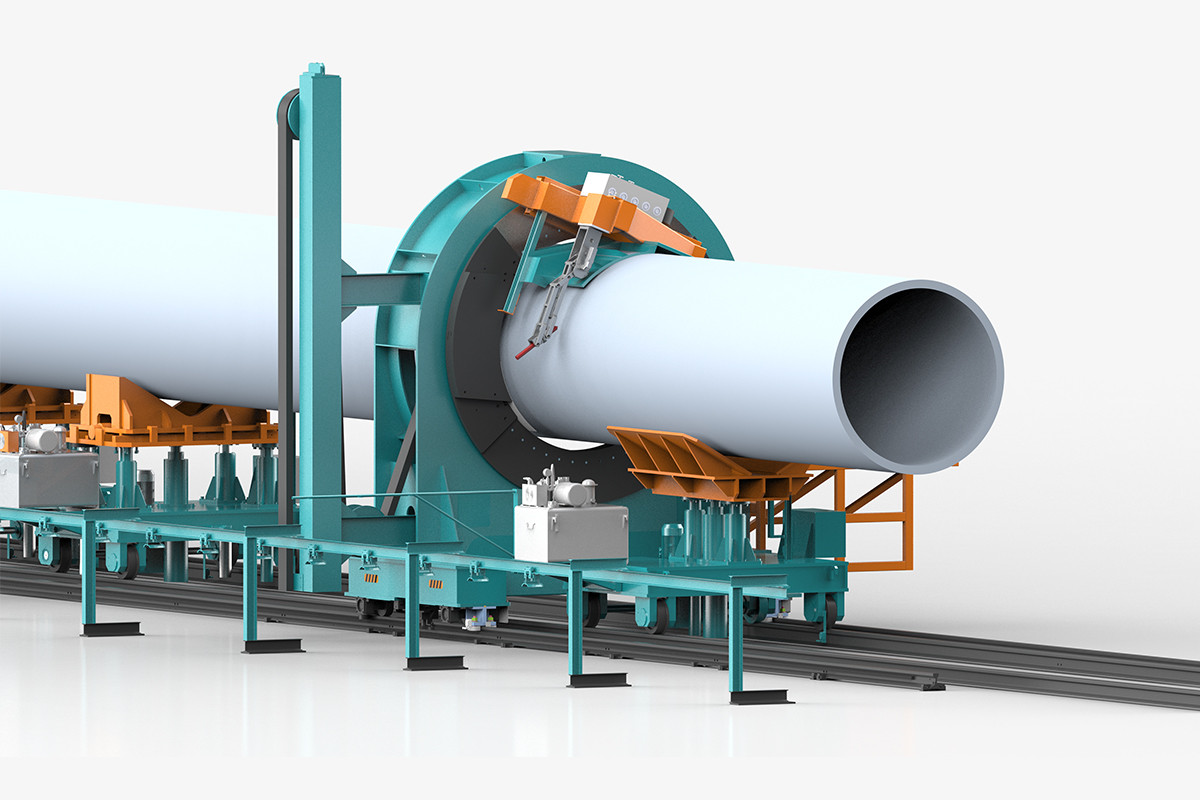

▶ Precision Double-end Cutting

The double-end cutting system enables communication between two control units, automatically acquiring origin positions to ensure synchronized cutting accuracy, which significantly improves processing efficiency and quality. The software seamlessly connects with Tekla 3D models, supporting the cutting of components with varying diameters to expand processing capabilities.

▶ Intelligent Cutting Compensation

The primary and secondary cutting stations utilize laser scanning to collect and analyze pipe ovality data, implementing real-time cutting compensation to effectively solve material shape deviations to ensure cutting precision.

▶ Accurate Pipe Centering

Four quadrant-mounted lasers on both primary and secondary units capture alignment data, feeding real-time position feedback to the main console. Independent touchscreens allow micro-adjustments in four directions, ensuring pipe centering.
