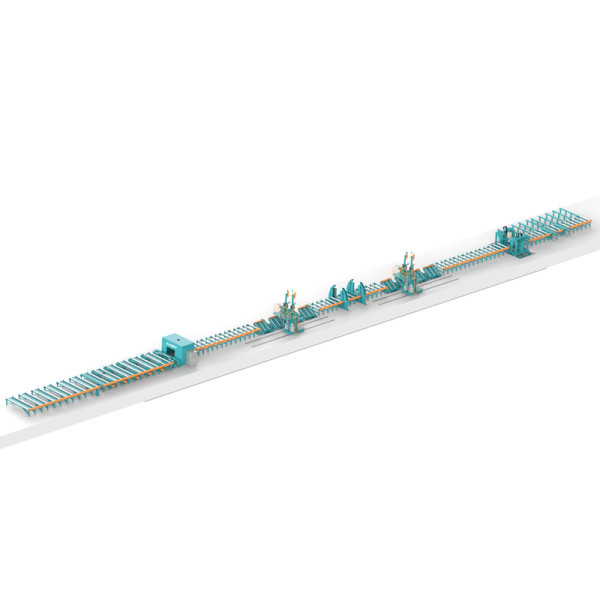

PG Beam Welding Line
| Categories | PG Beam Welding Line |
|---|---|
| Brand | YOMI CNC Cutting&Welding Machinery |
| Model | YM-PGL |
| Flange width | 200-1000mm |
| Flange thickness | 12-50mm |
| Web height | 500-2000mm |
| Web thickness | 10-40mm |
| Workpiece lenth | Max. 12m |
| Dimension | 110m*10m |
| Update Time | Jul 30,2025 |
Detail Information
① Three plates loading and flipping → ② Horizontal assembly → ③ Weld seams 1 & 2 → ④ 180° flipping → ⑤ Weld seams 3 & 4 → ⑥ Horizontal straightening → ⑦ Transfer to temporary storage.
Equipment Advantages
▶ Compatible with welding various types of offshore beams, flexible production improves efficiency; Laser-tracked welding seam, automatic start and stop, ensuring both precision and quality in welding;
▶ The operation panel is visualized and the working interface can be switched quickly.
