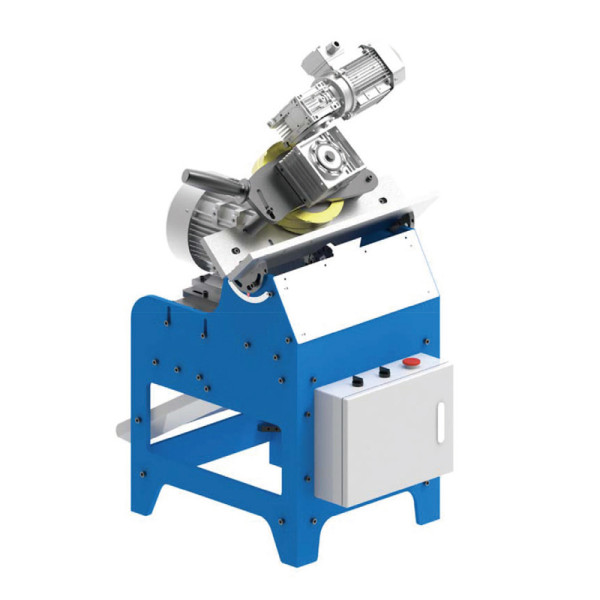

Desktop single-sided beveling machine

Categories	Beveling Machine
Brand	YOMI CNC Cutting&Welding Machinery
Power supply	380V/50Hz
Total power	6.6KW
Cutting main motor power	5.5KW/80V/50Hz
Traveling motor power	1.1KW/220V/50Hz
Spindle speed	1440r/min
Processing groove speed	0-1.5m/min
Update Time	Aug 8,2025

Detail Information

Video

Product Performance

1. Higher flexibility in small piece processing, greatly

improving work efficiency.

2. Complete cold cutting processing, with no oxidationdeformation on the qroove surface.

3. Meet the requirements of welding technology and canbe processed by non-destructive testing and filming.

4. The speed during processing can be adjusted quickly

or slowly.

5. Higher efficiency than manual chamfering.

6. Wide range of bevel objects.

Technical Parameter

power supply		380V/50Hz
Motor Power	Total power	6.6KW
	Cutting main motor power	5.5KW80V/50Hz
	Traveling motor power	1.1KW/220V/50Hz
Spindle speed		1440r/min
Processing groove speed		0-1.5 m/min
Thickness of clamping plate		3-40mm
Processing groove anale		30°-60°
Blade diameter		80mm
Number of blades		20
Workbench height		800mm
Single groove width		20mm
Product size		9608101150
Product weight		≈250kg
Processing method		mill
Processing material		Carbon steel, stainless steel, alloy steel, cast iron, aluminum plate, etc
Groove smoothness		Ra3.2-6.3
