YOMI 3D Beam Drilling Machine — YM-SKZ-1250

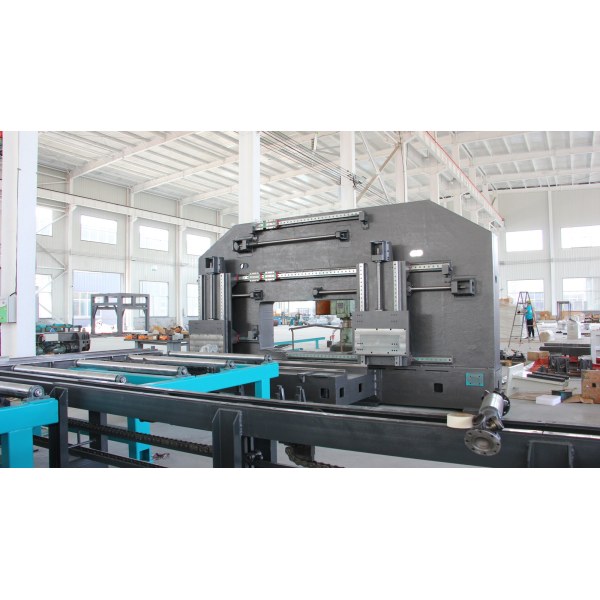

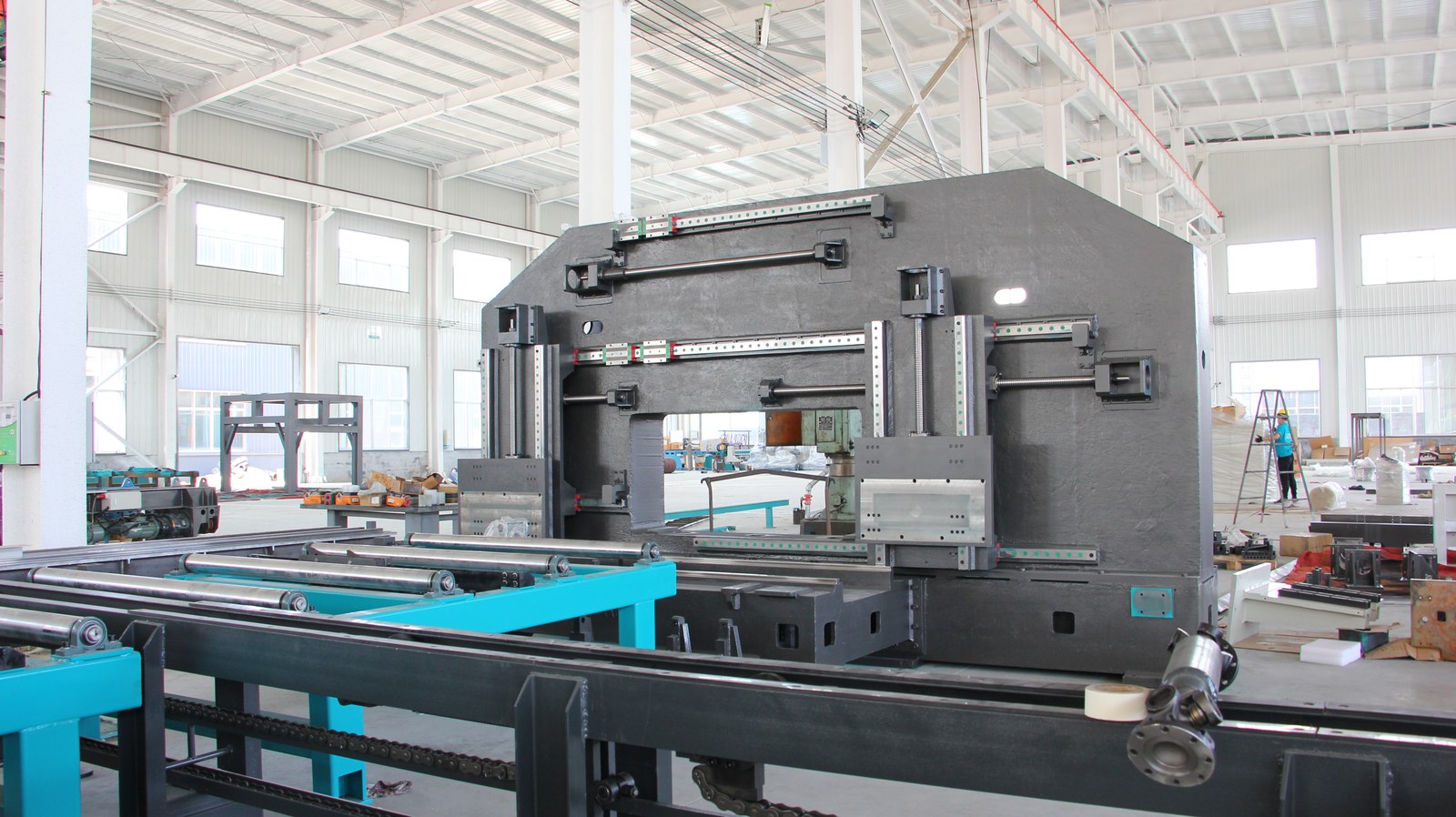

The YOMI YM-SKZ-1250 is a high-speed CNC three-dimensional beam drilling machine for H-beams and steel profiles. It drills connection-plate hole groups on three sides of the beam in a single pass, reads TEKLA DSTV files directly to generate the machining program, and holds hole-group accuracy within ±0.5 mm — a cold-processing replacement for manual layout and radial drilling in steel structure fabrication.

Request a Quotation Manufactured by Shandong YOMI Intelligent Science & Technology Co., Ltd.

Key Specifications at a Glance

How the Machine Works

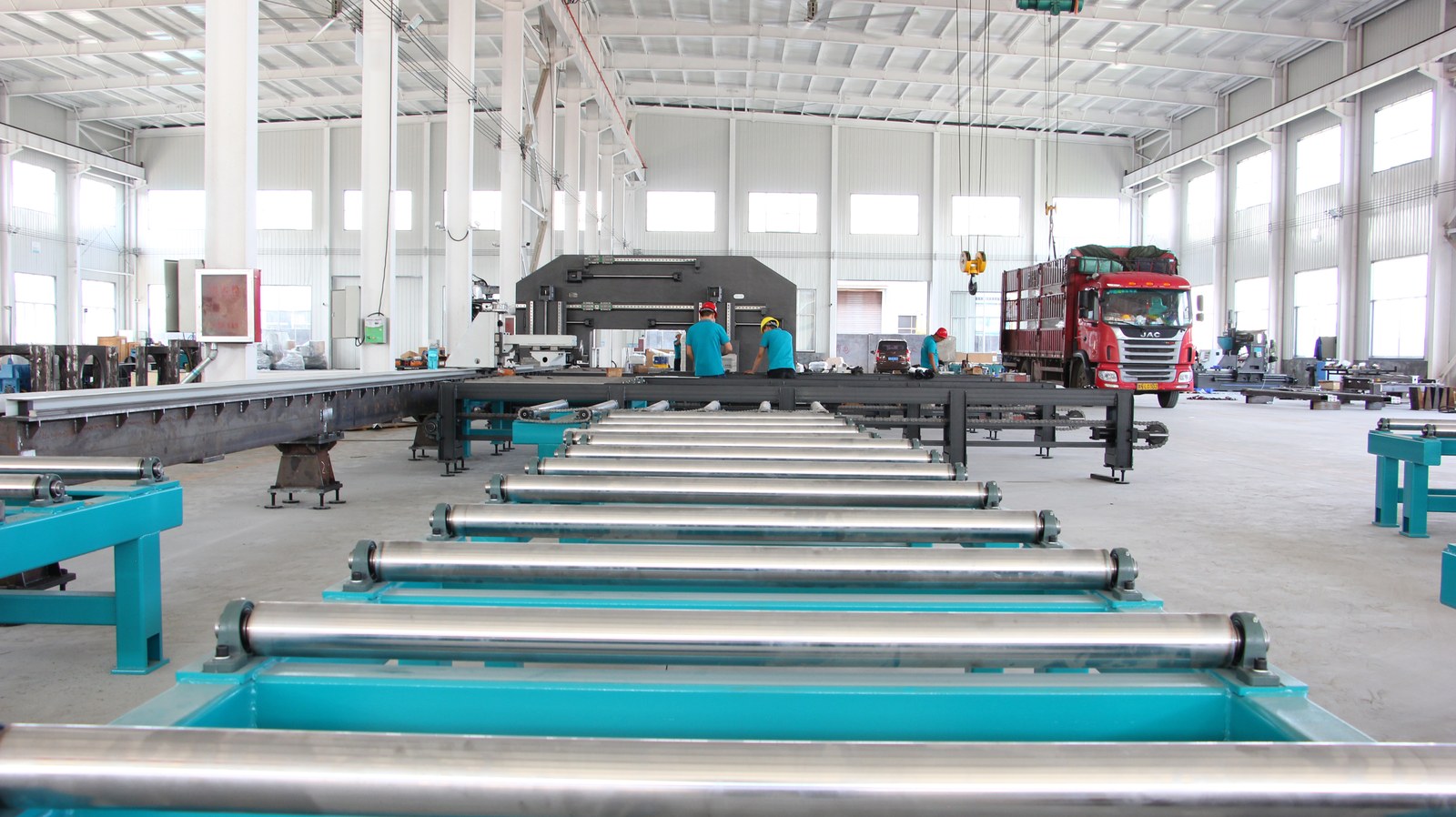

The 3D drilling line is built from three integrated modules — an infeed conveyor, a drilling unit and an outfeed conveyor. The beam travels along the transmission roller tables into the drilling unit, where three groups of power drills machine the connection-plate hole groups on the three faces of the profile at the same time. This is cold processing (no thermal distortion), which keeps hole geometry clean and repeatable.

Core Advantages

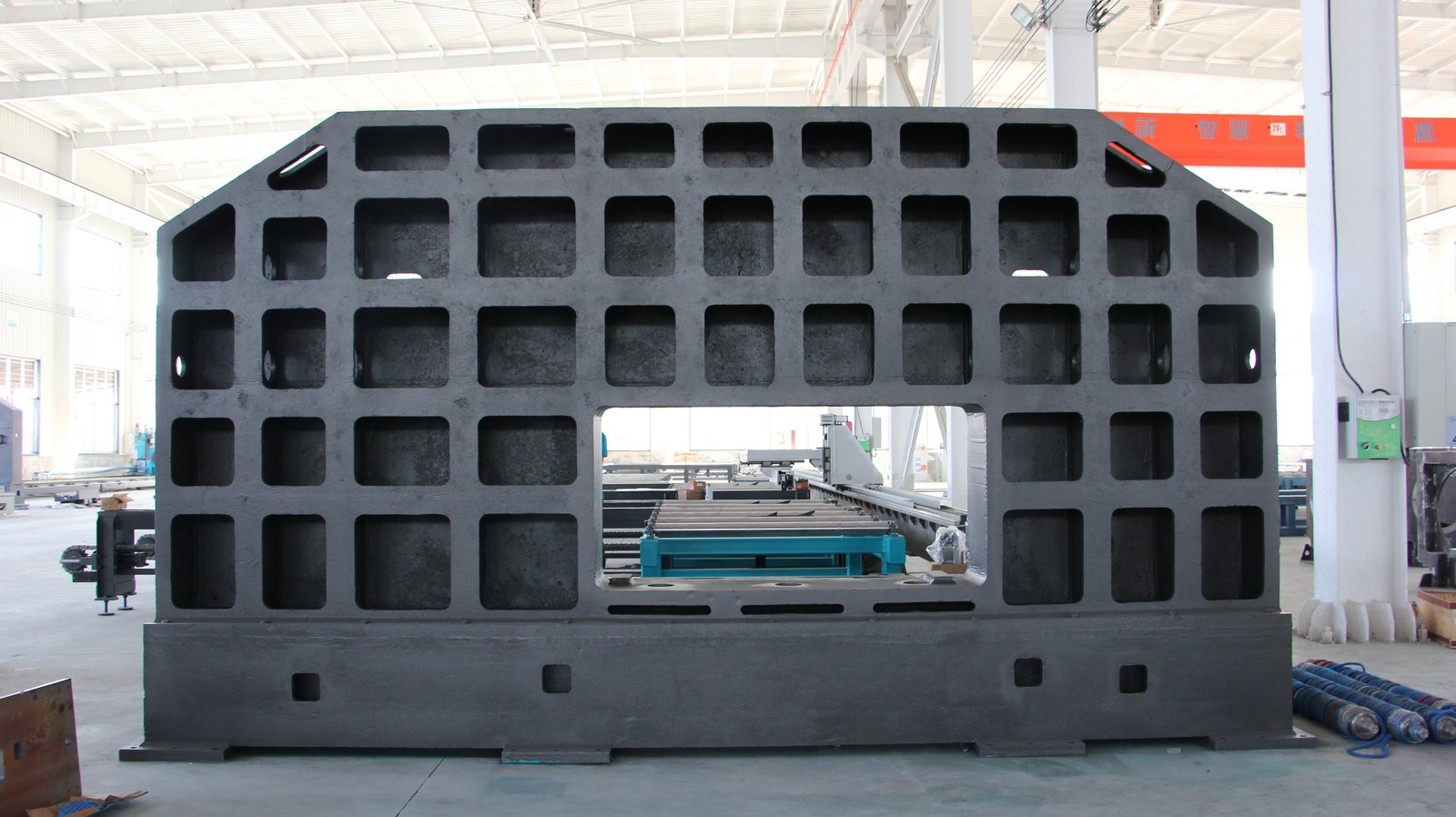

• Monolithic cast bed. The machine base is cast as one piece and weighs around 20 t, giving high rigidity, strong vibration damping and longer drill-bit life compared with welded-frame machines.

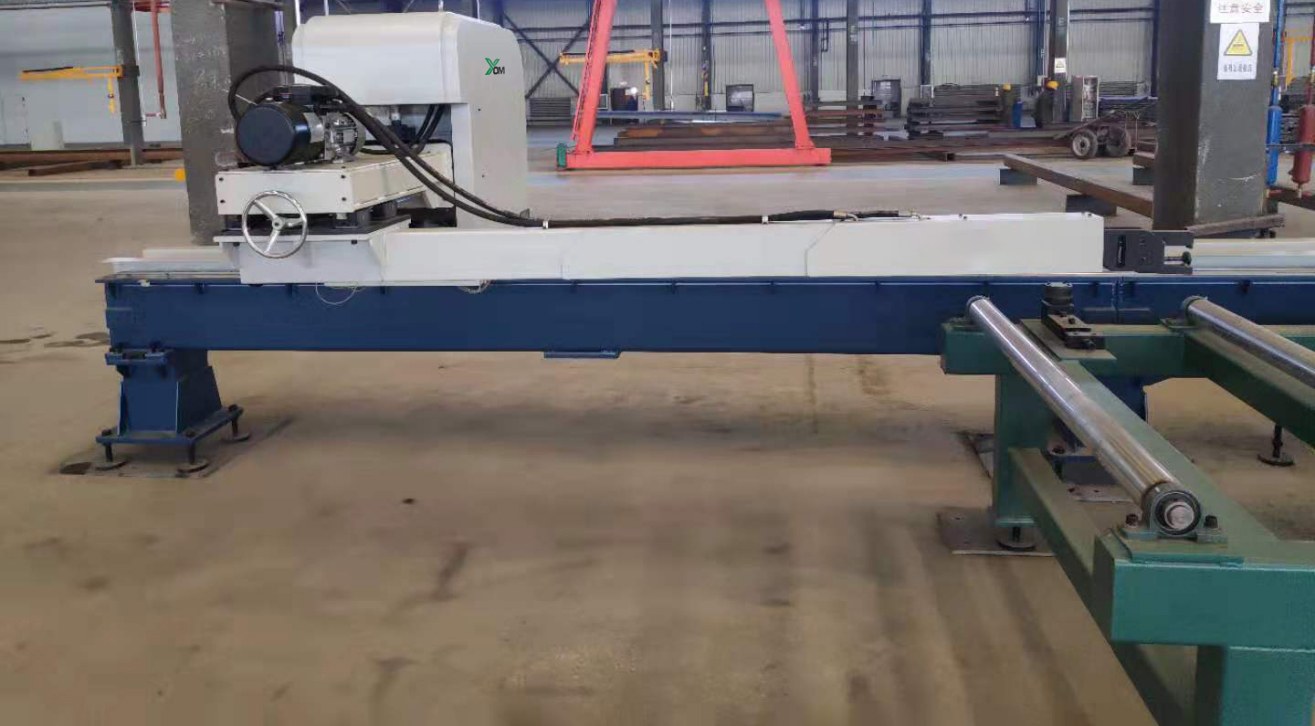

• High-speed BT40 spindle. Speeds of 30 – 3000 r/min and 3 × 15 kW spindle power cut drilling time on heavy H-beams.
• TEKLA DSTV ready. The controller reads standard 3D DSTV files and generates the machining program directly, with both online and offline programming supported.
• Independent control system. A self-developed CNC system with 3D graphic preview and automatic alarm diagnostics, with free lifetime upgrades.
• Precise hole groups. ±0.5 mm accuracy between adjacent holes within a group and ±1.0 mm per 10,000 mm between groups keeps bolted connections aligned.
• One-pass three-face drilling. Three drill groups work the three faces of the beam in one setup, replacing manual marking, radial drilling and reaming.

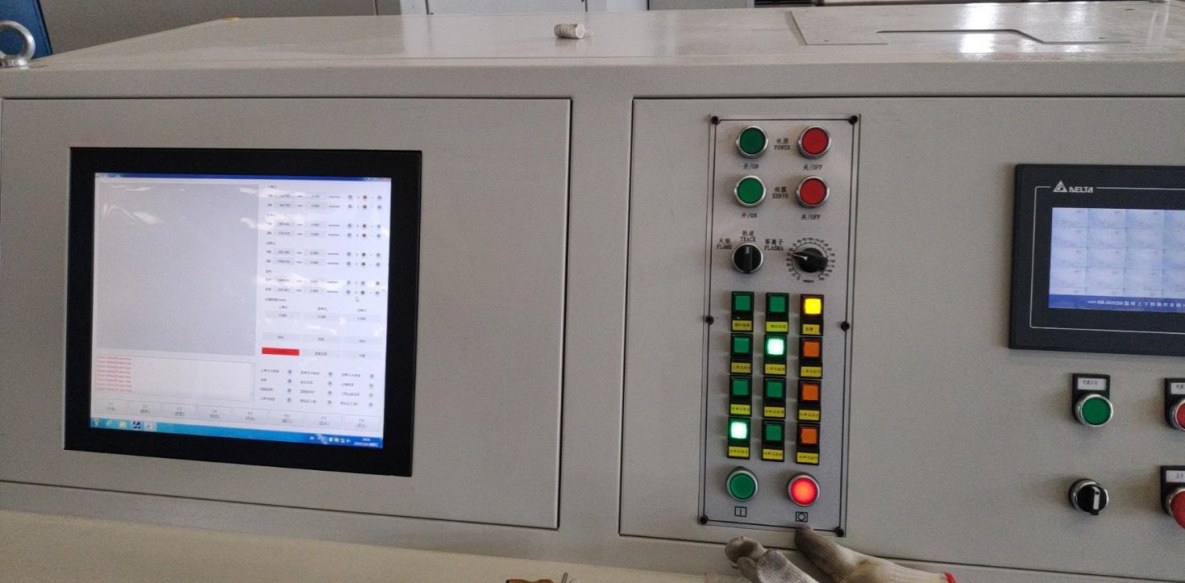

Control Console and Programming

Programming workflow

1. Import the fabrication model as a TEKLA 3D DSTV file.
2. The system generates the drilling program and shows a 3D preview of every hole.
3. Confirm and run — the machine positions and drills the three faces automatically.
4. Online or offline programming is supported for different workshop layouts.

Applications

The YM-SKZ-1250 is used wherever H-beams and steel profiles need accurate connection holes at production speed:

• Steel structure fabrication plants producing beams, columns and trusses.
• Bridge and infrastructure steelwork with high bolted-connection density.
• Industrial building frames, mezzanines and warehouse structures.
• Offshore and heavy-equipment steelwork requiring repeatable hole quality.

3D Beam Drilling Machine vs Traditional Drilling

Delivery, Warranty and Service

• Lead time: about 60 working days after order confirmation.
• Warranty: 12 months on the machine, with remote and on-site technical support.
• Quality system: manufactured under ISO 9001 quality management.
• Brand facts: YOMI operates from a 11,000 m² facility with 200+ staff, 2 factories and 9 workshops, exporting steel structure equipment to 120+ countries with 16+ years of experience.
• Packaging: seaworthy export packing with moisture protection and anti-rust treatment for long-distance shipping.
