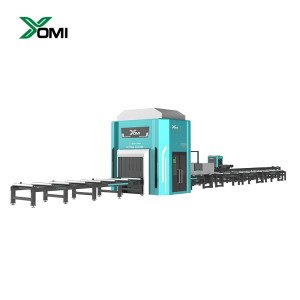

Intelligent H beam Laser Cutting Machine

Intelligent H beam Laser Cutting Machine

Intelligent H beam Laser Cutting Machine
Intelligent H beam Laser Cutting MachineIntelligent H beam Laser Cutting MachineIntelligent H beam Laser Cutting MachineIntelligent H beam Laser Cutting MachineIntelligent H beam Laser Cutting Machine
CategoriesH Beam Production Line
BrandYOMI CNC Cutting&Welding Machinery
ModelYM-XHJG-1250
Flange width100-600mm
Workpiece height100-1250mm
Cutting modeFiber laser
Cutting thickness1-30mm
Bevel angle±45°
Max weight6000kg
Cutting length accuracy0.05mm
Laser power20KW
Equipment size30m*10m*5m
Update TimeMar 2,2024
Detail Information

H beam Laser Cutting Machine Vedio

Suitable for H-beam, I-beam and Channel beam.
Cutting off, bolt holes,rat holes, beveling, and marking can be done in one machine.
Support Tekla steel structure 3D modeling data file cutting.

H beam Laser Cutting Machine Features

Subvert Traditional Cutting Technology
More than ten years of experience in teel structure industry, better understanding of steel structure technology.
Cutting off, bolt holes,rat holes, beveling, and marking can be done in one machine.
Supports various overlapping forms of bevel cutting.
Intelligent Production
Automatic loading system, easy to load workpiece, just place beam profile on the conveyor,automatic feeding can be realized.
Full-link production technology and logistics interconnection.
Can be directly connected to MES system.
Fully Enclosed Working Environment
European level protective glass observation port, equipped with thickened sheet metal protective cover.
Laser protection level is high to ensure production safety.
High laser protection level,Ensure production safety.
Automatic Focusing Laser Head
Equipped with Porad Laser Cutting Head
Achieve continuous focusing, rapid piercing and automatic cutting
of different thicknesses and materials of beam profiles.
Subvert Traditional Cutting Technology
Cutting off, bolt holes,rat holes, beveling, and marking can be done in one machine.
Supports various overlapping forms of bevel cutting.
Independent R&D systems
Directly connect to Tekla, automatic nesting, no need for secondary drawing
Low-code operation interface, simple and intuitive
Free software upgrade

Comparison with Plasma Cutting

(1)The cutting precision is high, surface is burr-free, less cutting smoke and more environmentally friendly.
(2)Cutting thin stainless steel sheets is 10 times faster than plasma.
(3)Cutting 6mm carbon steel is 4 times faster than plasma .
(4)Cutting 12mm carbon steel is twice faster than plasma.
